Doors with HPL upper layer

Design according to DIN 68706, part 1:
The doors with a thickness of approx. 40 mm are made of multi-layer composite panels. (No damp or wet room properties)

Basic Zero

Frame:

4–sided natural fibre board or wooden frame approx. 33 mm,
Additional door edging band and lock reinforcement approx. 32 mm

Inner layer:

33 mm tubular chipboard (tubular core 33mm, approx. 300kg/m³)

Topcoat:

0.8 High pressure laminate according to DIN EN 438,
Bonding with 2-component polyurethane adhesive

Intermediate layer:

3-4 mm natural fibre board

Edges:

Blunt or with standard rebate, according to DIN 18101,
Foil edge 3-sided (colours similar to surface finish)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 10 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge



  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Economy Zero

Frame:

4–sided natural fibre board or wooden frame approx. 33 mm,
Additional door edging band and lock reinforcement approx. 32 mm

Inner layer:

33 mm tubular chipboard (tubular core 33mm, approx. 300kg/m³)

Topcoat:

0,8 mm Hochdruck-Schichtpressstoffplatte nach DIN EN 438,
Verleimung mit 2-Komp. Polyurethankleber

Intermediate layer:

3-4 mm natural fibre board

Edges:

Blunt or with standard rebate, according to DIN 18101,

3-sided solid plastic frame can be replaned
(colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 20 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Damp-proof doors

Design according to DIN 68706 part 1:
The doors with a thickness of approx. 40 mm are made of multi-layer composite panels. These are suitable for use in rooms with  increased humidity and low splash water exposure.

Basic X

Frame:

3–sided natural fibre board or wooden frame approx. 33 mm, bottom 30 mm
PU recycling sheets, 100 % water-resistant, raw density 450 kg/m3, additional edging band and lock reinforcement approx. 32 mm

Inner layer:

33 mm tubular chipboard (tubular core 33mm, approx. 300kg/m³)
inner layer

Topcoat:

0.8 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Intermediate layer:

3-4 mm natural fibre board

Edges:

Blunt or with standard rebate, according to DIN 18101,
Foil edge 3-sided (colours similar to surface finish)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 10 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

K 42 TF

Frame:

3-sided natural fibre board frame approx. 60 mm, bottom 50 mm PU recycling panels, 100 % water-resistant, raw density 450 kg/m³, additional edging band and lock reinforcement included

Inner layer:

36 mm solid plastic rigid foam, raw density > 100 k/Pa

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438, waterproof gluing with 2-comp. polyurethane adhesive

Edges:

Blunt or with standard rebate to DIN 18101, 3-sided solid plastic frame can be planed (colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 20 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Economy

Frame:

3-sided natural fibre board or wooden frame approx. 33 mm, bottom 30 mm PU recycling panels, 100 % water-resistant, bulk density 450 kg/m³, additional band and lock reinforcement approx. 32 mm

Inner layer:

33 mm tubular chipboard (tubular core 33 mm, approx. 300 kg/m³)

Topcoat:

0.8 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Intermediate layer:

3-4 mm natural fibre board

Edges:

Blunt or with standard rebate according to DIN 18101,

3-sided solid plastic frame can be replaned
(colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 20 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Wet room doors

Design according to DIN 68706 part 1:
The doors with a thickness of approx. 40 mm are made of multi-layer composite panels. These are suitable for use in rooms with constant humidity and increased splashing water.

Object

Frame:

4–sided PU frame approx. 50 mm made of PU recycling plates,
100 % water resistant, bulk density 450 kg/m³

Inner layer:

36 mm solid plastic rigid foam, bulk density > 100 k/Pa

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Edges:

Blunt or with standard rebate according to DIN 18101,
3-sided solid plastic frame can be replaned
(colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 30 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

K 42 T

Frame:

4–sided PU frame approx. 80 mm made of PU recycling plates,
100 % water resistant, bulk density 450 kg/m³

Inner layer:

36 mm solid plastic rigid foam, bulk density > 100 k/Pa

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Edges:

Blunt or with standard rebate, to DIN 18101,
3-sided solid plastic frame can be replaned
(colours, white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 50 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Profi Comb

Frame:

4-sided PU frame approx. 80 mm made of PU recycling plates,
100 % water resistant, bulk density 450 kg/m³

Inner layer:

36 mm solid plastic honeycomb core, gross density 80 kg/m³

Topcoat:

2.0 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Edges:

Blunt or with standard rebate according to DIN 18101,
4-sided solid plastic frame can be replaned
(colours: white, grey, black, beige or ivory)

Edging band drilling / milling and lock milling included, door leaf can be shortened up to 5 mm

All ZAK TORMAX doors also available as sliding and swing doors!

Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB)
Sound insulation II (RW, P37dB)
Sound insulation III (RW, P42dB)
double wing doors
Class S frame reinforcement
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
  • Max. door height 3.900mm, max. door width 1.480mm (depending on laminate or HPL availability with or without joint line)
  • Standard    Optional

Frames for damp and wet rooms

The frames are suitable for use in rooms with high or constant humidity and little or higher splash water exposure (damp room/wet room): All wall thicknesses and intermediate sizes are available from 55 to 600 mm.

Damp room / wet room frame

Core material for wet room frames:

21 mm wood-based panel, bottom 100 mm PU recycling panels,
100 % water resistant, bulk density 450 kg/m³ against rising dampness

Core material wet room frames:

21 mm PU recycling plates,
100 % water-resistant, bulk density 450 kg/m³

Topcoat:

0.8 mm high pressure laminate according to DIN EN 438,
waterproof gluing with 2-comp. polyurethane adhesive

Lining plate:

23 mm, edges 2 mm ABS – plastic (colours similar to surface finish) rounded (R=2 mm)

Coating:

55 mm, edges 2 mm ABS – plastic rounded (R=2mm), wall connection with circumferential sealing lip

Seal:

3-sided built-in seal in the rebate area

Closing point:

Stainless steel angle striking plate for rebated version, stainless steel flap striking plate for blunt version (single locking)

Edging band fixation:

V 3612 Series Screw Bag

Adjustment range:

+10 / -5mm

Damp room / wet room block frame

Core material for wet room frames:

46 mm natural fibre board frame, bottom 100 mm PU recycling panels, 100 % water-resistant, bulk density 450 kg/m³ against rising moisture

Core material wet room frames:

46 mm PU recycling panels, 100 % water-resistant, bulk density 450 kg kg/m³

Topcoat:

2 mm high pressure laminate according to DIN EN 438, waterproof gluing with 2-comp. polyurethane adhesive

Seal:

3-sided installed seal in the rebate area

Closing point:

Stainless steel angled striking plate, stainless steel lobed striking plate for blunt version, single locking and 53 mm thick

Edges:

Blunt or with standard rebate acc. to DIN 18101,
1-sided solid plastic frame, blind frame
2-sided solid plastic frame can be replaned
(colours: white, grey, black, beige or ivory)

Edging band fixation:

Basic construction Series V 3604/18,5

(Also available as blind frame)

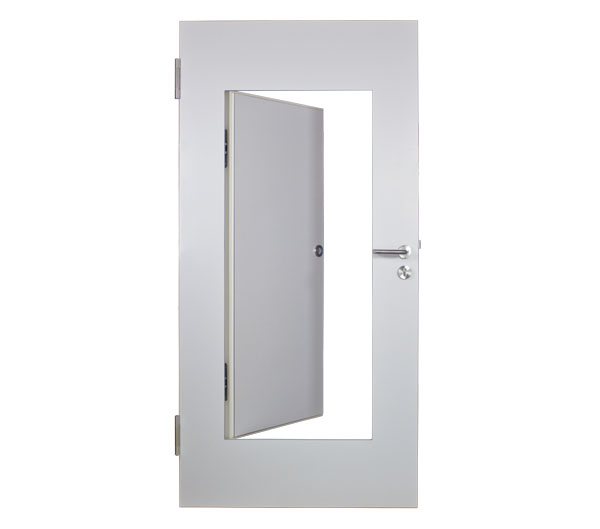

Special solutions

  • Sandwich composite elements

  • Wet room locker doors

  • Radiation protection doors / laboratory doors / soundproof doors / sliding doors

  • Shower enclosures made of HPL solid core panels

  • Door heights up to 3,900 mm and

  • Door widths up to 1,480 mm

  • Door thicknesses up to 70 mm

Doors Matrix

  All HPL doors are also available in sliding or swing door design
  Basic Zero Eco Zero Basic X K 42 TF Economy Object K 42 T Profi-Comb
Max. door height 3.900mm, max. door width 1.480mm
(depending on laminate or HPL availability with or without joint line)
(1) Installation of organic substances Standard
Optional
Stress group M
Stress group s
Stress group E
Climate class I
Climate class II
Climate class III
Sound insulation I (RW, P32dB) ●¹ ●¹ ●¹
Sound insulation II (RW, P37dB) ●¹ ●¹ ●¹
Sound insulation III (RW, P42dB) ●¹ ●¹ ●¹
double wing doors
Class S frame reinforcement ●¹ ●¹ ●¹
Reinforcement for overhead door closer, handles and stopper
4-sided solid plastic frame
Ventilation grille, special milling
Light cut-outs/ Portholes
Double sealing
Lock milling
Milling / Drilling edging bands
3rd edging band milling / drilling
2nd lock milling
Special milling e.g. integrated door closers / 3-fold locking etc.
Lead inserts for X-ray rooms     ●¹ ●¹ ●¹
Door thickness 50 mm / 70 mm
Seam revealed
Double rebate (from door thickness 50mm)
Top panel
Door leaf with or without edge
0%

    This website uses cookies to ensure you get the best experience on our website
